LED驱动板

5个月前

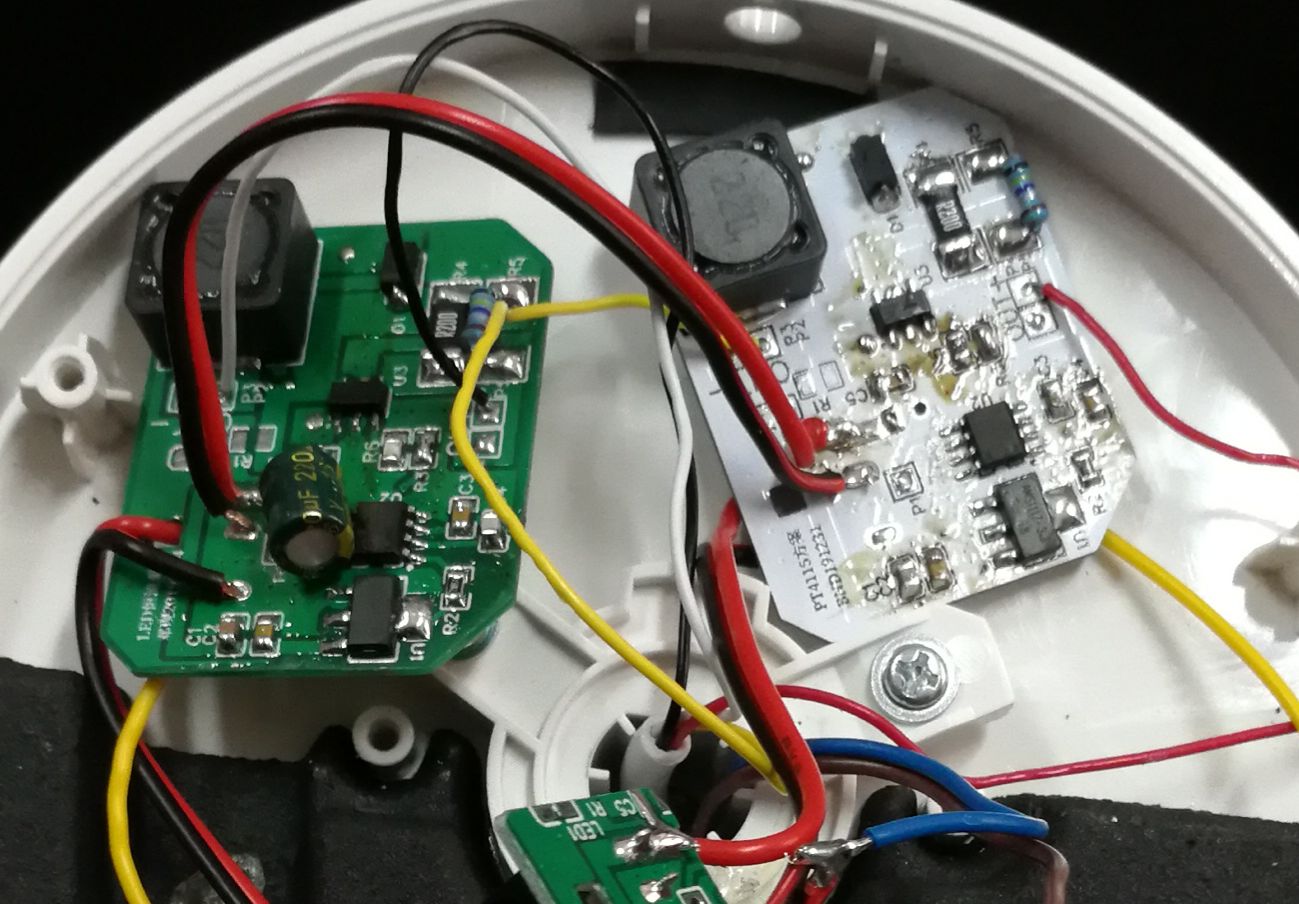

简介:可调光恒流LED驱动器,体积小发热小,15V输入,最大可到25V

开源协议: CC-BY-NC 3.0

  • 47
  • 0
  • 1

描述

低压恒流LED

BOM

ID Name Designator Footprint Quantity BOM_Manufacturer Part BOM_Manufacturer BOM_Supplier BOM_Supplier Part
1 1K R2,R1 R0805 2 ERJ6GEYJ335V PANASONIC LCSC C413238
2 PT4115 U1 SOT-89-5 1 PT4115EE89E PowTech LCSC C126161
3 SGL8022W U2 SOP-8_L4.9-W3.9-P1.27-LS6.0-BL 1 SGL8022W SIGMA LCSC C81650
4 103 C1,C3,C6 C0805 3 GRM21AR72E222KW01D Murata Electronics LCSC C415382
5 DC DC1 DC-IN-TH_DC-0440-2.5A-2.0 1 DC-0440-2.5A-2.0 XKB Enterprise LCSC C381118
6 GREEN LED1 LED0805-R-RD 1 TJ-S2012SW8TGLC6B-A5 TOGIALED LCSC C192320
7 PAD P2,P5,P6,P7 HDR-TH_1P-P2.54-V-M 4 Header-Male-2.54_1x1 ReliaPro LCSC C81276
8 AMS1117-3.3 U3 SOT-223_L6.7-W3.5-P2.30-BR 1 AMS1117-3.3 Youtai Semiconductor Co., Ltd. LCSC C347222
9 47K R4 R0805 1 ERJ6GEYJ335V PANASONIC LCSC C413238
10 H1 P4 HDR-TH_1P-P2.54-V-M 1 Header-Male-2.54_1x1 ReliaPro LCSC C81276
11 475 C4 C0805 1 GRM21AR72E222KW01D Murata Electronics LCSC C415382
12 0.25 R5 RES-SMD_L6.4-W3.2 1 RLP25JEER250 TA-I Tech LCSC C163060
13 220uF C5 CAP-TH_BD6.3-P2.50-D1.0-FD 1 EGT227M1EE11RRS0P Man Yue Tech Holdings LCSC C238354
14 106 C2 C0805 1 GRM21AR72E222KW01D Murata Electronics LCSC C415382
15 47uH L1 IND-SMD_L12.0-W12.0 1 SMRH127-470M(f) Shenzhen Zhenhua Fu Elec LCSC C241237
16 SS14 D1 SMA_L4.4-W2.8-LS5.4-R-RD 1 SS14-LTP Micro Commercial Components LCSC C78574
