标准版 萝莉遥控器12通道v1.10
简介：罗丽遥控器主板加外壳
描述

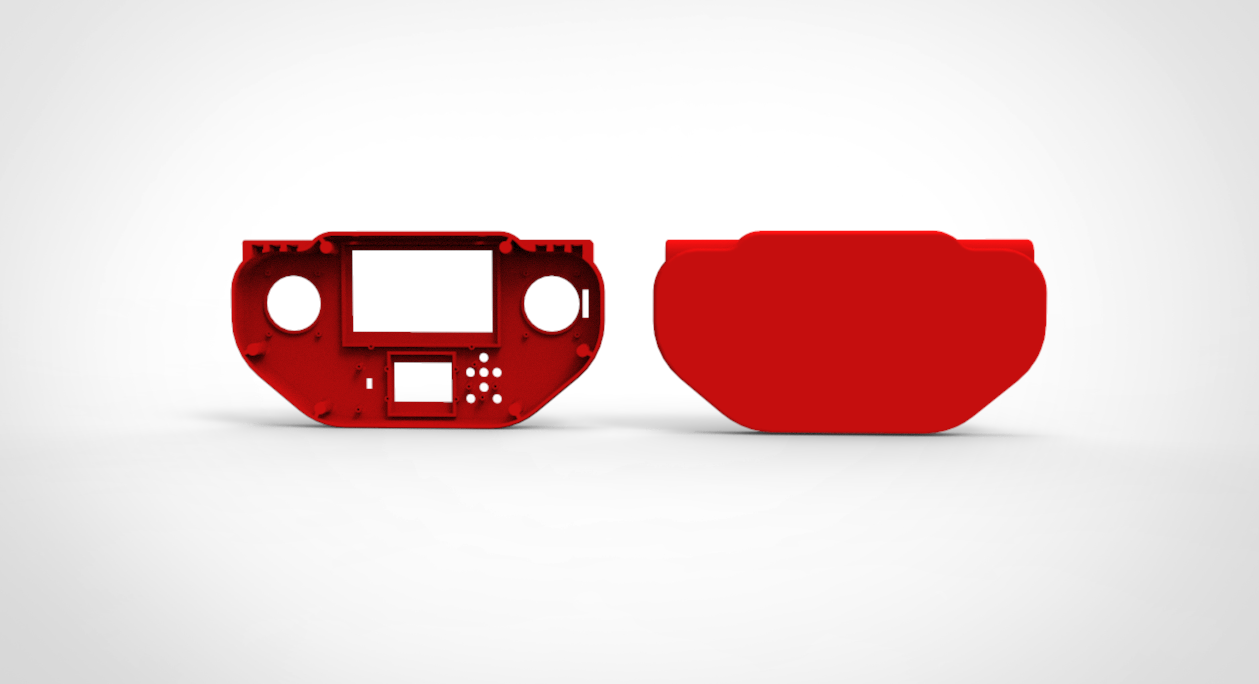

根据搜集别的原理图整理制作的pcb 2-3s供电 ,自己用CAD画的外壳还没完成仅供参考
| ID | Name | Designator | Footprint | Quantity | BOM_Supplier | BOM_Supplier Part | BOM_Manufacturer | BOM_Manufacturer Part |
|---|---|---|---|---|---|---|---|---|
| 1 | PZ254V-11-04P | TTL | HDR-TH_4P-P2.54-V-M | 1 | LCSC | C492403 | XFCN | PZ254V-11-04P |
| 2 | 22pF | C9,C8 | C0805 | 2 | LCSC | C24658 | FH | 0805CG220J500NT |
| 3 | SS-12D10L5 | SW1 | SW-TH_SS-12D10L5 | 1 | LCSC | C319012 | XKB Enterprise | SS-12D10L5 |
| 4 | HNB09A03 | BUZZER1 | BUZ-TH_BD9.0-P5.00-D0.6-FD | 1 | LCSC | C96102 | Jiangsu Huaneng Elec | HNB09A03 |
| 5 | 12MH晶振 | X1 | OSC-SMD_L5.0-W3.2 | 1 | LCSC | C122521 | Zhejiang Abel Elec | - |
| 6 | 100uF | C6,C3,C1 | CAP-TH_BD5.0-P2.00-D0.8-FD | 3 | LCSC | C698165 | Yunxing | SPT1CM101D07OR |
| 7 | CH1-确认 | SW8 | SW-SMD-6X6X4.3MM | 1 | LCSC | C180420 | Omron Electronics | B3S-1000P |
| 8 | CH2-下 | SW10 | SW-SMD-6X6X4.3MM | 1 | LCSC | C180420 | Omron Electronics | B3S-1000P |
| 9 | CH4-右 | SW7 | SW-SMD-6X6X4.3MM | 1 | LCSC | C180420 | Omron Electronics | B3S-1000P |
| 10 | CH1-返回 | SW9 | SW-SMD-6X6X4.3MM | 1 | LCSC | C180420 | Omron Electronics | B3S-1000P |
| 11 | CH4-左 | SW6 | SW-SMD-6X6X4.3MM | 1 | LCSC | C180420 | Omron Electronics | B3S-1000P |
| 12 | 菜单 | SW12 | SW-SMD-6X6X4.3MM | 1 | LCSC | C180420 | Omron Electronics | B3S-1000P |
| 13 | CH2-上 | SW11 | SW-SMD-6X6X4.3MM | 1 | LCSC | C180420 | Omron Electronics | B3S-1000P |
| 14 | 10K | R1,R3 | R0805 | 2 | LCSC | C332266 | Ever Ohms Tech | TR0805D10KP0550 |
| 15 | 稳压二极管 | U2,U3 | SOT-223-3_L6.5-W3.4-P2.30-LS7.0-BR | 2 | LCSC | C6186 | AMS | AMS1117-3.3 |
| 16 | PPM | P2,P1 | CONN-TH_2P-P2.00_PH-2A_C2319 | 2 | LCSC | C2319 | BOOMELE | PH-2A |
| 17 | 12864 | CN2 | CONN-TH_8P-P2.00_PH-8A | 1 | LCSC | C33476 | BOOMELE | PH-8A |
| 18 | 20K | R2 | R0805 | 1 | LCSC | C328439 | ResistorToday | PTFR0805B20K0N9 |
| 19 | PH-3A RHOS | CH7,CH2,CH1,CH3,CH4,CH5,CH6,CHB1,CHE,CHD,CHA,CHC1 | CONN-TH_12P-P2.00-H-W4.8_PH-3A | 12 | LCSC | C2320 | BOOMELE | PH-3A RHOS |
| 20 | 100nF | C5,C4,C2 | 0805 | 3 | LCSC | C360619 | CCTC | TCC0805X7R104M500DT |
| 21 | 发光二极管 | LED1 | LED1206-RD | 1 | LCSC | C434438 | Yongyu Photoelectric | SZYY1206R |
| 22 | STC12LE5A60S2 35I | U1 | LQFP-44_L10.0-W10.0-P0.80-LS12.0-BL | 1 | LCSC | C8756 | STC | STC12LE5A60S2 35I |
| 23 | E01-ML01S | U4 | WIRELM-SMD_E01-ML01S | 1 | LCSC | C108546 | Chengdu Ebyte Elec Tech | E01-ML01S |
